Oil Drilling Barite Granule
Oil Drilling Barite Granule is drilling barite ore, insoluble in water and acid, non-toxic, non-magnetic, and can absorb X-rays and gamma rays. The main use of barite in the drilling industry is as a weighting agent for mud in the solid control system to balance the formation pressure and prevent blowouts; in oil-based drilling fluids, it is adsorbed on the well wall to play a role in lubrication and anti-sticking; it blocks formation gaps and shields temporary gambling.
Product Name：Oil Drilling Barite Granule
Product Abbreviation：Oil Drilling Barite Granule
Supply Capacity：1000MT/Per month
Delivery Time：Within 15 working days after payment
Product Weight：25kg/bag
Oil Drilling Barite Granule is insoluble in water and acid, non-toxic, non-magnetic, and can absorb X-rays and gamma rays. The main use of barite in the drilling industry is as a weighting agent for mud in the solid control system to balance the formation pressure and prevent blowouts; in oil-based drilling fluids, it is adsorbed on the well wall to play a role in lubrication and anti-sticking; it blocks formation gaps and shields temporary gambling.
Index | TLZ-DP01 | TLZ-DP02 |
Appearance | Off-white Powder | Off-white Powder |
Special gravity ≥ | 4.1 g/cm³ | 4.2 g/cm³ |
BaSO₄+ SrSO₄Content | 85% | 90% |
Hg ppm ≤ | 1 ppm | 1 ppm |
Cd ppm ≤ | 3 ppm | 3 ppm |
As ppm ≤ | 40 ppm | 40 ppm |
Pb ppm ≤ | 1000 ppm | 1000 ppm |
Si0₂Content | - | 3% max |
Fe₂O₃Content | - | 3% max |
Carbonates | 5000 ppm max | 5000 ppm max |
Water Soluble Alkaline Earth Metals As Calcium ≤ | 250 mg/kg | 250 mg/kg |
Miosture | 2% | 2% |
Particle Size 75μm Residue | ≤ 3% | ≤ 3% |
Particle Size ≤ 6μm | ≤30% | ≤30% |
Our barium sulfate is used in construction, food, pharmaceutical, PVC, personal care and other industries as follows：
1.Pharmaceutical field:
As a contrast agent for X-ray and CT scanning, it can enhance the contrast effect of organs or blood vessels in the body due to its high density and high absorption, helping doctors to make accurate diagnosis.
Used in the treatment of gastrointestinal disorders, such as gastric ulcers and colitis, patients can drink a solution containing barium sulfate and observe the gastrointestinal tract through X-ray examination.
2.Industrial field:
Plastic and rubber: as filler to improve the hardness, abrasion resistance and aging resistance of the products, and at the same time reduce the cost.
Coatings and paints: as white pigment and filler, to increase the thickness, strength and durability of the paint film, and to improve the covering power and gloss of the coating.
Paper making: as filler, improve the whiteness and opacity of paper, improve the smoothness and uniformity of paper.
Ceramics and glass: as raw material to improve the physical properties of products, such as whiteness, density and heat resistance.
Oil and gas: as an aggravating agent for drilling mud to help stabilize well walls and prevent blowouts.
3.Environmental protection:
Used as a precipitant to treat heavy metal ions in wastewater to form water-insoluble precipitates, thus removing heavy metal pollutants.
4.Geological exploration:
As a heavy sand mineral of barite, it is used to measure the grade and reserves of the ore and guide the mining and utilization of the ore.
5.Other fields:
Construction materials: used as concrete aggregate, paving materials, used as shielding material instead of lead sheet in nuclear facilities, X-ray laboratories, etc.
Electronics and optics: used in the manufacture of optical components and window materials due to its high refractive index and optical stability.
Our Advantages

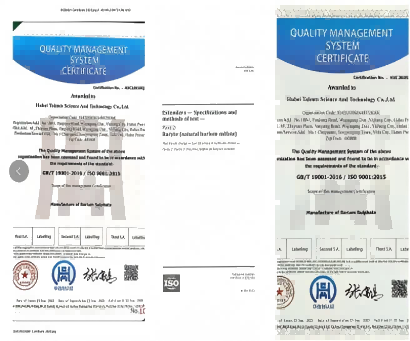

With more than 18 years of experience in the chemical industry, Talents has its own mines and professional team to support our products to be sold all over the world. Currently, Talents has passed the ISO9001,ISO3262-2, ISO2024 certification, and all heavy metal tests of ROHS are qualified.
Quick Detail:
① Very High purity guaranteed
② High whiteness
③ High specific gravity
④ Natural ,Non toxic and magnetic
⑤ Resistant to acids and alkalis
Top grade Natural Barium sulfate, Take very high content ore to make the powder. Make sure Bas04 more than 95%. With good whitenesslgure and speclal sultable tor the hgh weatherbllv reculrements applicauon. Outdoor palnt. Non toxic vessel baint and other replacement oiprecipitated barium sulphate

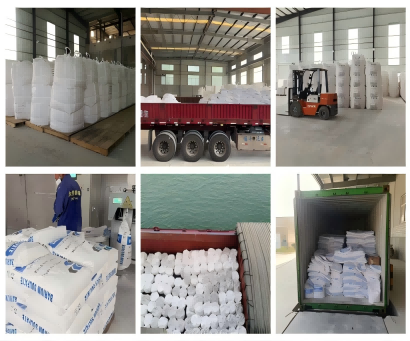

PACKAGE INFORMATION
25±0.2 kgs sealed bag or 1000kg/big bag.
STORAGE AND SAFETY
The product is a kind of white powder which is safe, nontoxic and harmless. Keep from moisture during transport and should be stored in a ventilated, dry place. To achieve best possible results, we recommend storage under the condition stated above and use within 12 months from production. Avoid breathing dust when handling, and wash with soap & water in case of skin contact. For more details, please refer to the Material Safety Data Sheet.
1. Delivery time
a) For the stock items, we can arrange the shippment within 7 days after received your payment. For the customized items, we will indicate the delivery time in the quotation list.
2. MOQ&Shipping
MOQ: 10MT
a) Full containers by sea
b) LCL by sea
3. Payment term
a) Small quantity : recommend T/T
b) Full containers : recommend T/T or L/C at sight
4.Charge for sample?
Free samples(≤1kg)
If you are interested in our products, please leave your contact information in the message board below, and we will contact you soon.
